Description

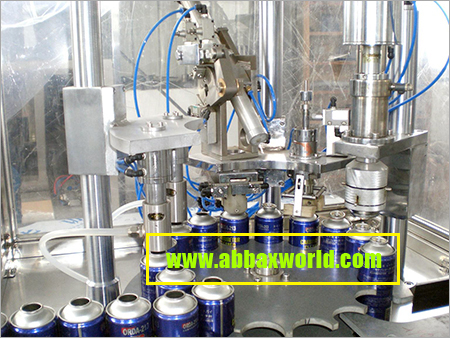

This is the special type of Machine to fill the liquid (Alcohol) with Manually Pump loading & then after Automatic Crimping as well as Gas (Any filter Gas like LPG, Neon, Nitrogen etc.) Charging by boosting operation.
In such types of Machine will be providing allover Pneumatically operational work due to avoid Hazards OR explosion from electric current.
For this Machine you have to provide Enclosed chamber (Bricks & concrete wall) due to avoid any injury from the explosion.
Output
2100 – 2400 Cans/Hour of Max speed for Filling volume will be not more than 100ml & it will be increase when the Filling volume will be Less than 100ml.
Power Require
Only for Conveyor FLP arrangement will be providing with 3-Ph induction motor & it will be outside from the chamber.
Air Require
Fresh filtered Dry compressed Air require with 10-12Kg/sq.cm with continuously operational work & with providing storage tank. It will be providing by customer end.
Gas Require
Fresh properly filtered Gas require through the columns to avoid & filter the molecules enter into the Boosting pump due to weight variations during the Gas filling operation. It will be providing by customer end. Will be provide all the filtering as well as columns to be provide (if require accordingly customer offering) by us.
